Historic Shed was contacted by a couple who live in the Hyde Park historic district in Tampa to design a garage and guest room for a very unusual lot. Triangular in shape, their small lot was just over 4,500 sf and contained a lovely one-story Craftsman bungalow with less than 1,000 sf. The atypical lot was further constrained by a large protected oak tree on the site, and one on a neighbor's lot, just over the property line. With Tampa's strong tree protection ordinances, this left little space to build. Building up was the only real option to maximize the remaining lot space.

The site once had a one-story garage on the lot. The original concrete was still in place, but a ramshackle carport had been constructed by a previous owner.

Before: The site once had a one-story one-car garage on the lot, long since gone. The original concrete was still in place, complete with a 1919 date embossed. A ramshackle carport had been constructed by a previous owner.

The historic bungalow on the site has a 3:12 roof pitch and 4' bead board eaves with bracket supports.

The Main House: The historic bungalow on the site has a 3:12 roof pitch and 4' bead board eaves with bracket supports.

After tweaking the design to fit the lot and meeting with Tampa's Historic Preservation Office and Forestry Department, the resulting project created a 12'x20' one-car garage with apartment above. A 6'x8' one-story shed allowed additional storage while accommodating the lot's shape and giving a visual step down from the two-story volume to the street. The stairs were placed at the rear of the building for privacy with an exterior design that allowed them to encroach within the required oak tree setback.

Due to height constraints at the Historic Shed shop, the first and second floors were prefabricated separately.

Installation of the Garage Apartment adjacent to the historic Hyde Park bungalow.

Installation of the Garage Apartment adjacent to the historic Hyde Park bungalow.

Installation of the prefabricated outbuilding.

Trusses installed, roof sheathing on, and the shed addition in place.

Trusses installed, roof sheathing on, and the shed addition in place on the right side.

The garage design itself took its cues from the main house which had a low-sloped front-gable roof and very wide eaves. Walls were clad in lap siding and an existing skirt board was inspiration for a belt course on the new building. The new outbuilding was kept simpler in architectural detail, but clearly complementing the main residence.

Windows and shed door installed.

Windows and shed door installed. With no alley and an odd shaped lot, the garage faces the street and has the same front setback as the main house.

The stairs to the apartment are set to the rear of the building for privacy. The exterior stairs allowed the building to set closer to the protected tree on the site.

The stairs to the second floor apartment are set to the rear of the building for privacy. The exterior wood framed stairs allowed the building to set closer to the protected tree on the site.

Second floor interior view when you walk in the door. The floors are laminate, the ceiling is 1x6 V-groove pine, and the walls are drywall. A mini split ac system cools and heats the space.

Second floor interior view when you walk in the door. The floors are laminate, the ceiling is 1x6 V-groove pine, and the walls are drywall. A mini split ac system cools and heats the space.

The main room in the second floor apartment. The space will double as a home office and guest suite.

The main room in the second floor apartment. The space will double as a home office and guest suite.

The French doors let in extra light. A 5'-6"x5'-6" 3/4 bath is located on the right.

The French doors let in extra light. A 5'-6"x5'-6" 3/4 bath is located on the right.

View into the apartment bathroom

View into the apartment bathroom.

The Garage Apartment Floor Plans

The Garage Apartment Floor Plans

A steel overhead garage door with a carriage house overlay by CHI finishes out the front facade.

A steel overhead garage door with a carriage house overlay by CHI finishes out the front facade along with period-inspired lighting.

The ribbon driveway completes the exterior of the garage apartment with a period look.

The ribbon driveway completes the exterior of the garage apartment with a period look.

The interior of the garage was finished in plywood fro added strength.

The interior of the garage was finished in plywood fro added strength. The storage shed is located on the right.

Shed bead board batten door by Historic Shed

The 6'x8' side storage shed features a cypress bead board door.

Carriage House facade by Historic Shed in Tampa Florida

Details on the Garage Apartment front facade

Eave and trim details on the garage apartment

Eave and trim details on the garage apartment

The finished product, waiting for sod.

The finished product, waiting for sod.

A new deck creates a welcoming entry from the street.

Landscaping completes the look.

And the rear of the carriage house completed.

See more about the Two-story Garage-apartment options. A two-car version is in the works as well.

Historic Shed recently completed this 10'x14' custom  garden shed to complement a 1920s residence in the Hyde Park historic neighborhood in Tampa. The storage shed features a gable roof with exposed rafter tails and eave brackets similar to the main house.

Wood storage shed in Hyde Park Historic District, Tampa, FL

The 10'x14' shed replaced a non-historic shed that had fallen into disrepair. Most likely, the spot originally was the location of a one-car garage, not much larger than this new shed.

Custom wood storage shed in Florida

The shed is simple in design, but rich in details such as the gable end brackets, custom gable louvered vent and cypress bead board double doors.

Bungalow garage gable end

The gable end vent was built out of cypress to complement one on the main house.

Custom windows and flower boxes for a bungalow shed in Tampa

A pair of 3-lite salvaged wood windows are located on the right side of the shed with cypress flower boxes supported by brackets for a finished look.

While definitions of what constitutes a bungalow home vary, the common ingredients generally include one to one-and-a-half stories, a full or nearly full-width front porch, and a low slope roof. Examples can exhibit a variety of architectural styles including Craftsman, Mission and vernacular. We have designed sheds to complement a variety of bungalow homes, most with Craftsman detailing such as eave brackets and exposed rafter tails.

One of our earliest Historic Shed designs complemented a 1923 Craftsman bungalow within the historic Hyde Park neighborhood in Tampa. The bungalow featured a cross-gable roof with a small front gable vent dormer, a full width integral front porch with brick piers and round spool columns, integral carport, exposed rafter tails and eave brackets. We fully renovated the house, inside and out, including reopening the front porch that had been enclosed with jalousie windows and installing a period-inspired breakfast nook.

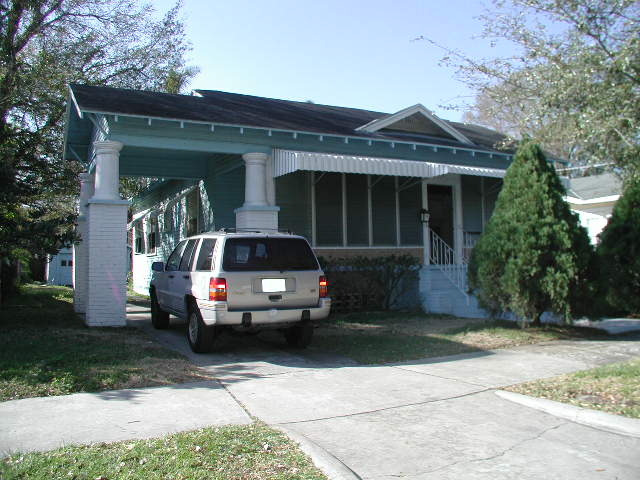

Bungalow "Before"
Bungalow "After"

New Breakfast Nook

As the renovations came to a close, the room that had been designated a home office was reallocated as a nursery for a second child. To replace the lost office space, we built a 10'x14' shed in the rear yard to complement the main house, complete with finished interior, electrical service, internet, cable TV and a wall unit AC. The new shed was designed and built with the same roof slope, gable end vents, exposed rafter tails, eave brackets, siding, etc. as the main house. The interior had wood flooring, beadboard-covered raised ceiling and board and batten interior walls. Because of site constraints, the shed was site-built.
Framing the home office Historic Shed on site
The home office shed nestled into the landscaping
The shed is accessed via a bridge over a koi pond and has a reclaimed brick patio - not a bad commute!
